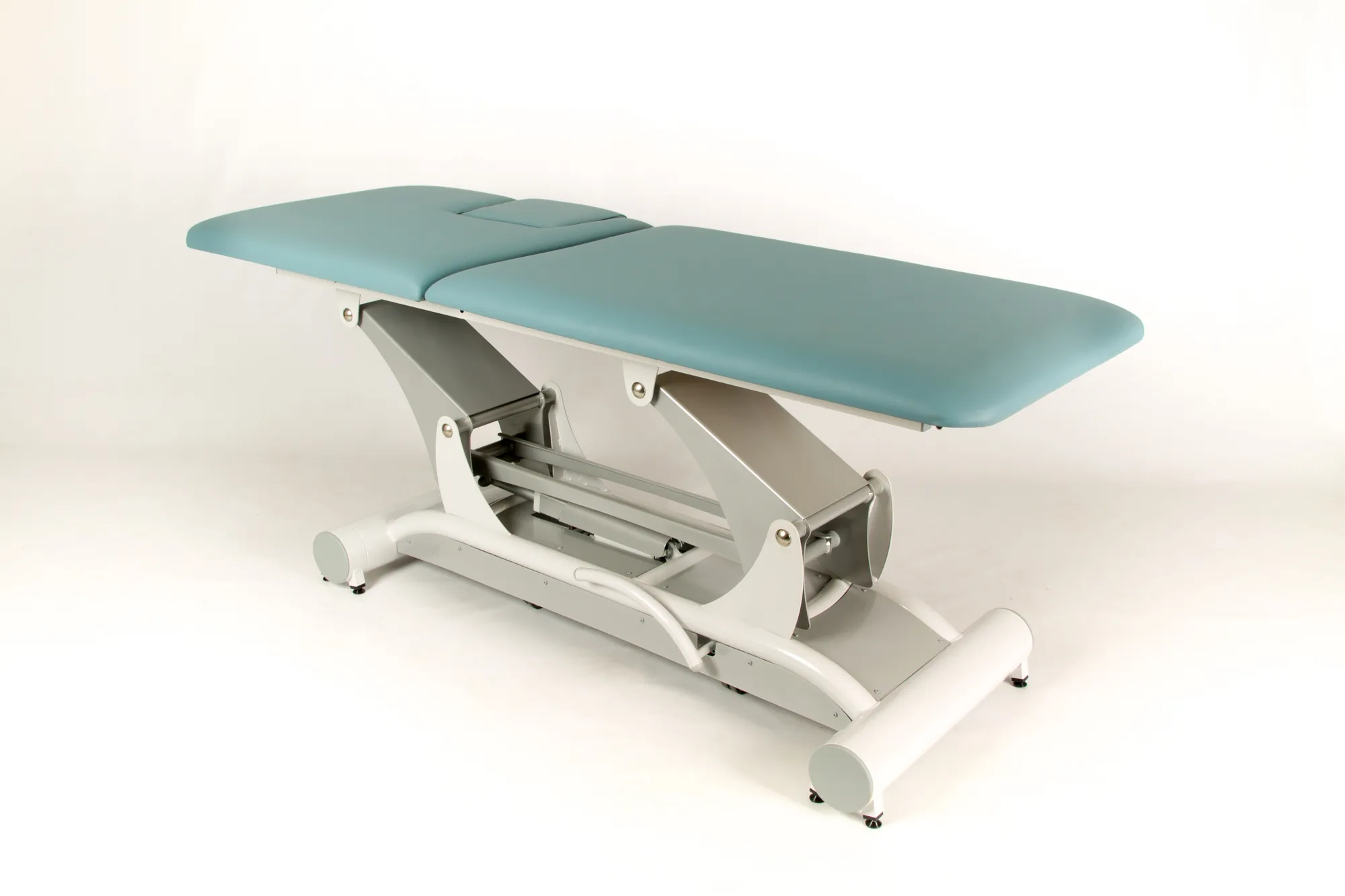

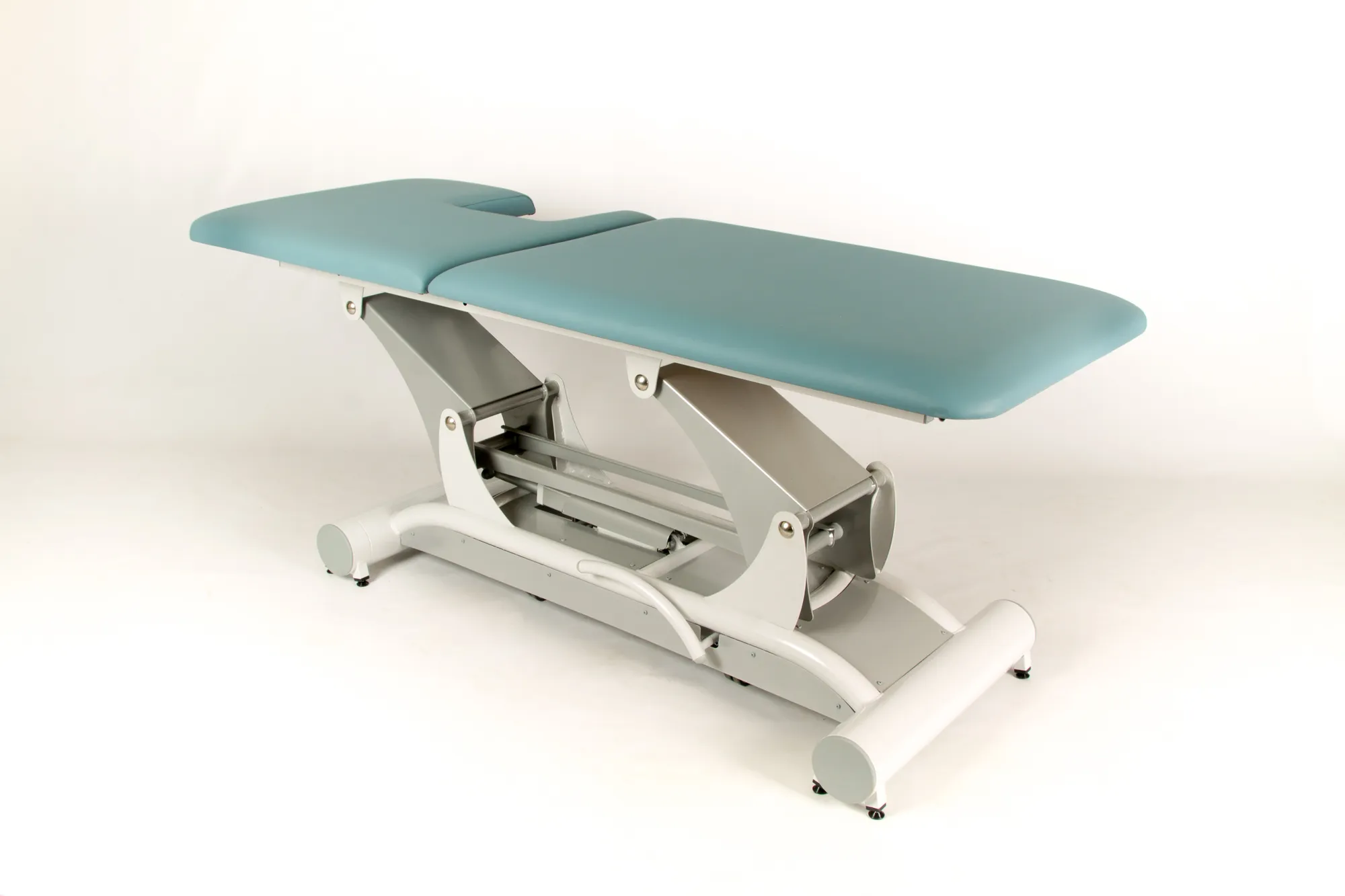

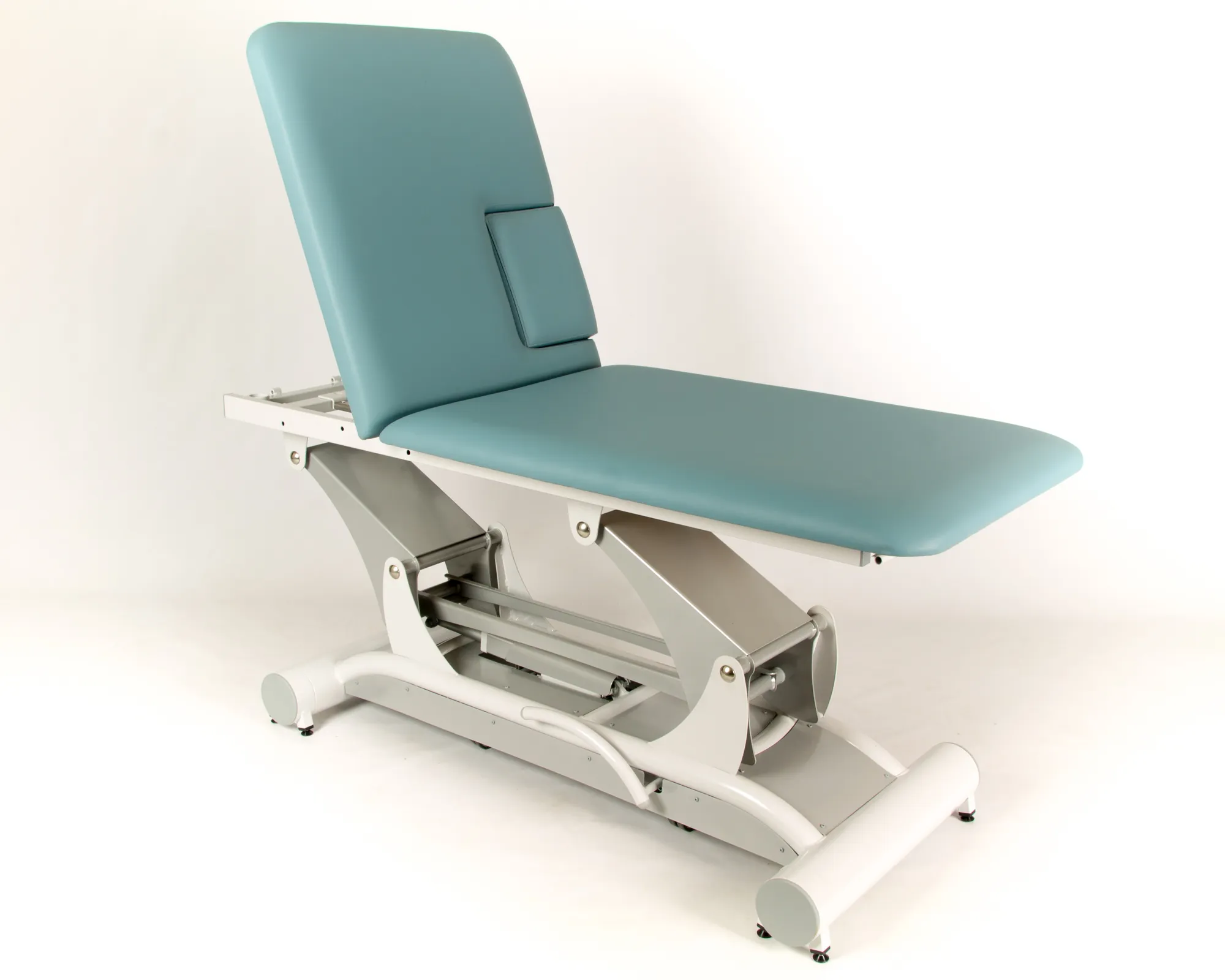

Neuva E
Design
Tough and stable construction meets a fresh look that stands out from the crowd.
Quality Components
Top-of-the-line German Hanning motors, Bansbach gas springs and Skai leather ensure maximum performance and durability.
Customization
Endless upholstery and frame finish combinations. Options include solid colors, patterns and wood imitation.
Main Features
- Laser cut steel construction.
- E lectrically adjustable height, powered by a smooth and quiet medical-grade 220 V motor
- Gas spring adjusted backrest.

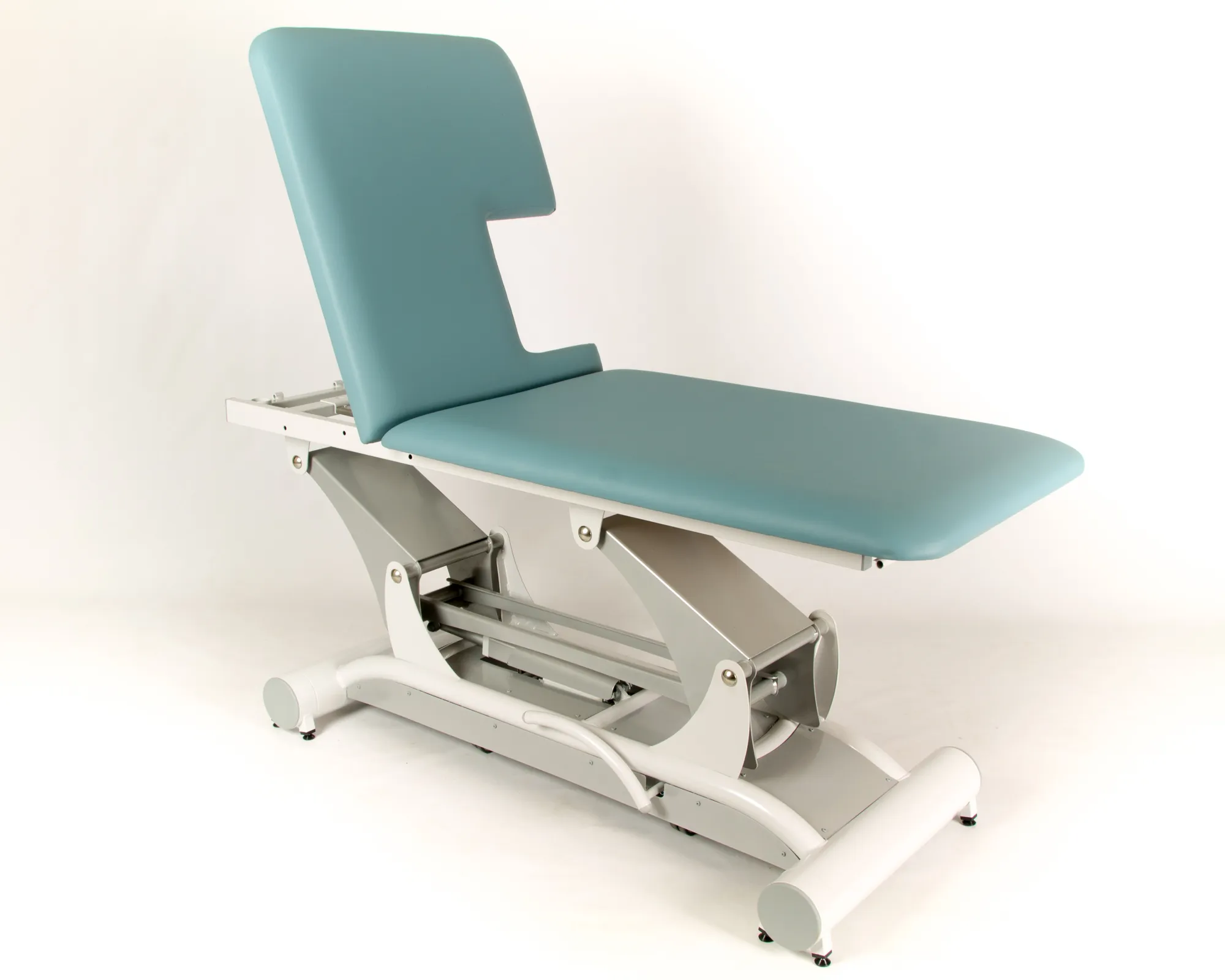

- Optional heart section, that can be removed for echocardiographic procedures. Standard table comes with a closed, single-piece backrest (see product photo gallery).
- Four layer upholstery, which ensures, that the bottom plywood base cannot be felt by the patient.
- Across the entire range of motion, the table top moves backwards only 15 cm, which is less than half of what competitors have to offer.
- Developed and manufactured in Estonia.
Technical Data
- Height adjustable 49…90 cm
- Back rest adjustable 0…65 degrees
- Safe working load 220 kg
- Standard width 62 cm
- Standard length 200 cm (adjustable section 80 cm, horizontal section 120 cm)
- Mass 70 kg
Accessories
Standard equipment:
- Single piece backrest
- Foot switch
Additional equipment:
- Paper roll holder
- Backrest with removable heart section for echocardiography
- Central-locking castor wheel system
- Additional foot switch
Customization
Leather: Standard colors are creme, silber, mais, feuer, bleu, bordeaux, apfelgrün, schwarz from Skai Tundra line . Other colors and materials are available on request. Frame color options: Standard colors are light grey RAL 7047 and dark grey RAL 9023. Other colors are available on request. Frame cover color options: Standard color is grey RAL 9006. Other colors are available on request. Optional – Textured frame covers: Wood and carbon fibre imitation are available for an extra fee. Other textures (leather, stone imitation etc.) are available on request.
